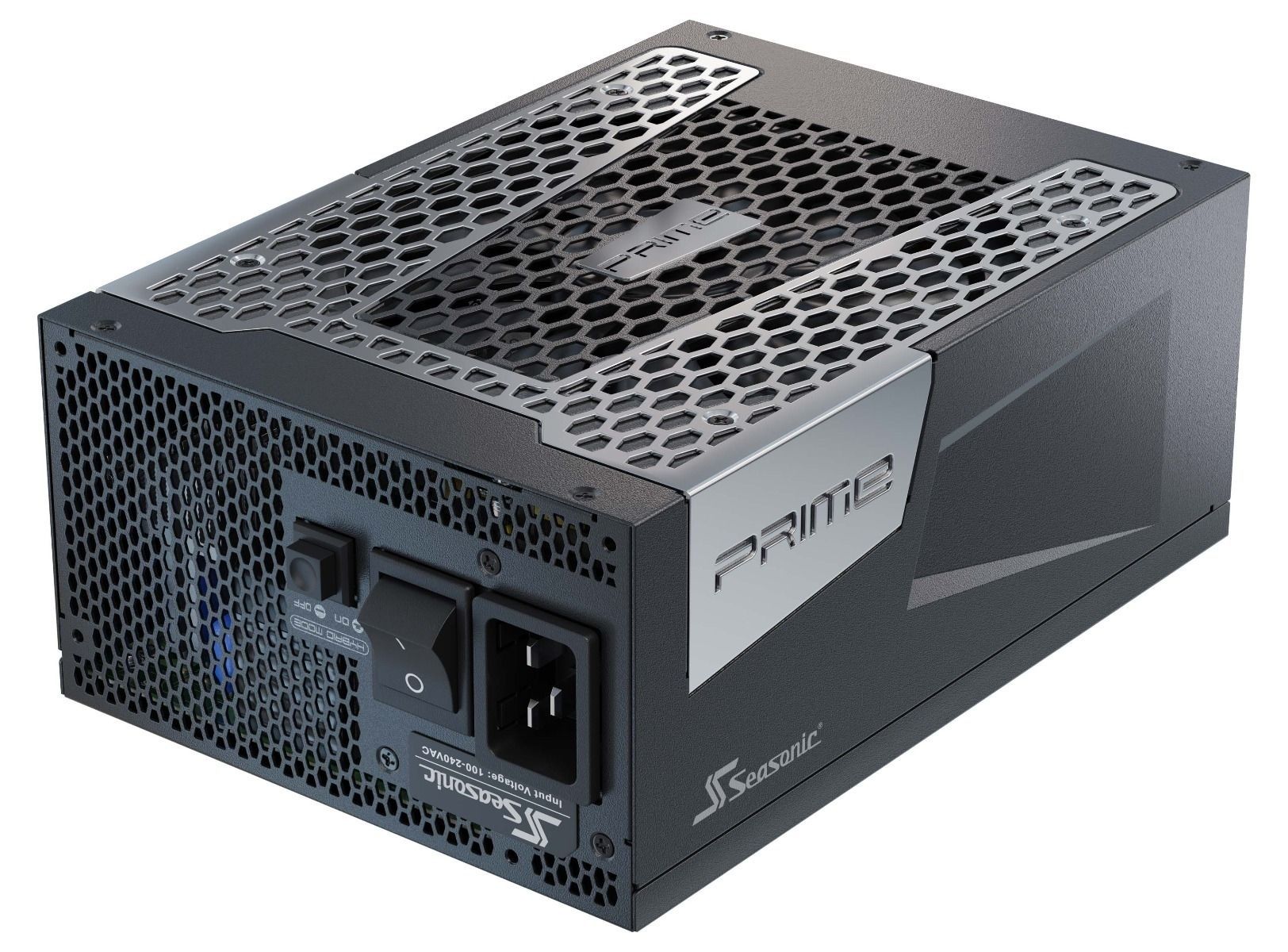

Seasonic PRIME TX-1600 1600W Titanium ATX 3.1 Fully Modular PSU SSR-1600TR2

PRIME TX ATX 3.1 The Seasonic PRIME TX ATX 3.1 Series is built on top of all the great features of PRIME TX platform with added ATX 3.1 and PCIe 5.1 compatibility. Currently the 1600 W and 1300 W units are equipped with native 12V-2??6 connectors, Digital Fan Control, and 105??C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term durability. All these qualities make these power supplies perfect to welcome the newest high power graphic cards and processors on the market. Technical Specifications 80PLUS Titanium Cybenetics Efficiency Level Titanium Cybenetics Noise Level Lambda A Form Factor ATX/EPS Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H) Fan Information Fan Size 135 mm Fan Control Digital Hybrid Fan Control Fan Bearing Fluid Dynamic Bearing Life Expectancy 50,000 hours at 40 C, 15 % - 65 % RH Cable Information Modularity Fully Modular Cable type Individual Black Cables with Braided Pattern Electrical Features Operating Temperature 0 - 50 C MTBF @ 25 C, excl. fan 100,000 hours AC Input Full Range Protection OPP, OVP, UVP, OCP, OTP, SCP Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH Warranty 12 Years Power Output AC Input Voltage: 100 V - 240 V Current: 15 - 10 A Frequency: 50 Hz - 60 Hz DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB Maximum Power 25 A 25 A 133.3 A 0.5 A 3 A 125 W 1600 W 6 W 15 W Total Continuous Power 1600 W
