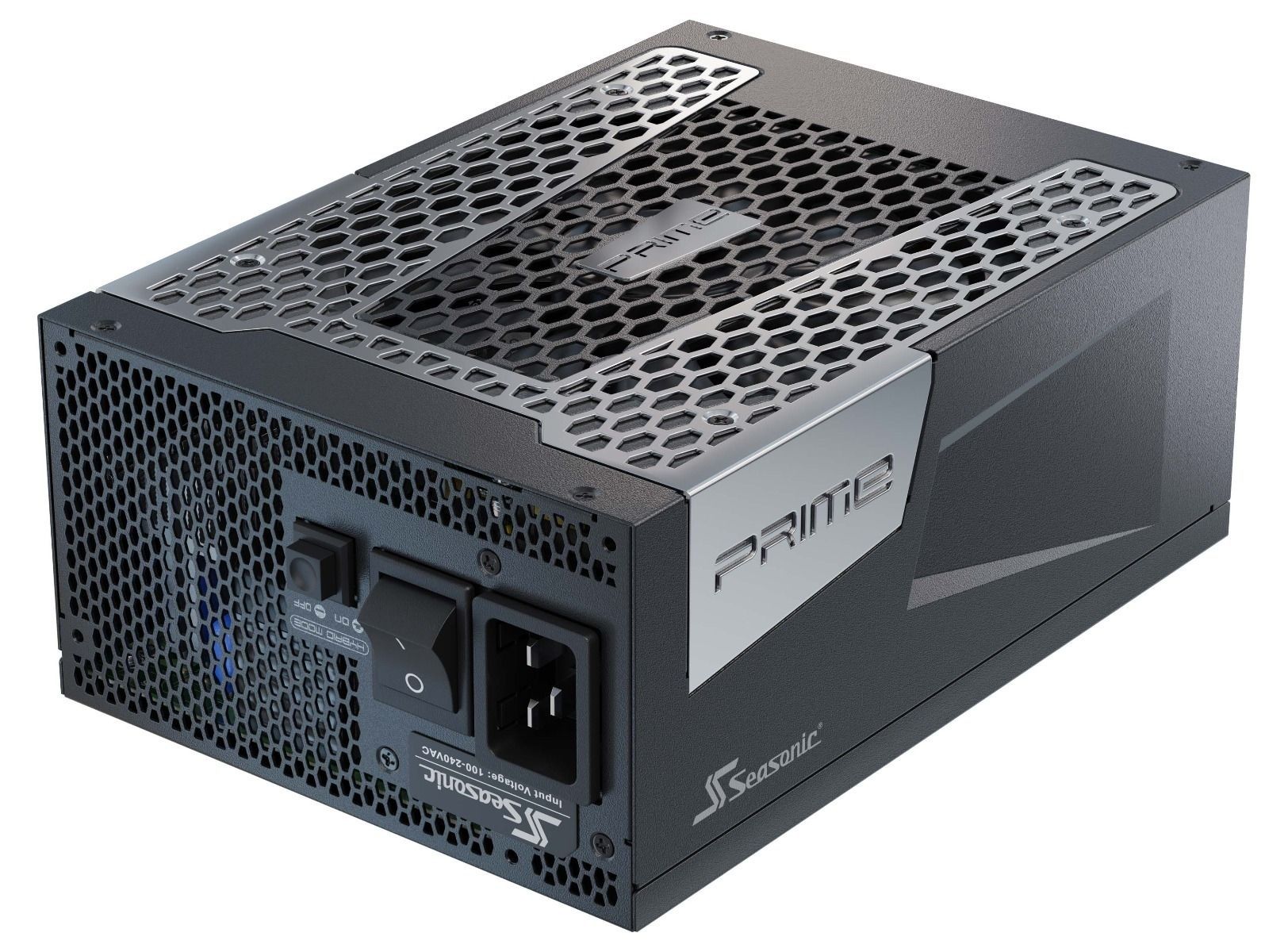

Seasonic PRIME TX-1300 1300W Titanium Modular PSU

FEATURE SUMMARY 80 PLUS Titanium certified Micro Tolerance Load Regulation (0.5 %) Cable-free Connection Design Premium Hybrid Fan Control - Fanless until 40 % load Multi-GPU setup Gold plated connectors Technical Specifications 80PLUS Titanium Cybenetics Efficiency Level TBA Cybenetics Noise Level TBA Form Factor Intel ATX 12 V Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H) Fan Information Fan Size 135 mm Fan Control Premium Hybrid Fan Control Fan Bearing Fluid Dynamic Bearing Life Expectancy 50,000 hours at 40 C, 15 % - 65 % RH Cable Information Modularity Fully Modular Cable type Flat black cables Electrical Features Operating Temperature 0 - 50 C MTBF @ 25 C, excl. fan 150,000 hours AC Input Full Range Protection OPP, OVP, UVP, OCP, OTP, SCP Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH Warranty 12 Years Power Output AC Input Voltage: 100 V - 240 V Current: 15 - 8 A Frequency: 50 Hz - 60 Hz DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB Maximum Power 25 A 25 A 108.3 A 0.5 A 3 A 125 W 1300 W 6 W 15 W Total Continuous Power 1300 W
