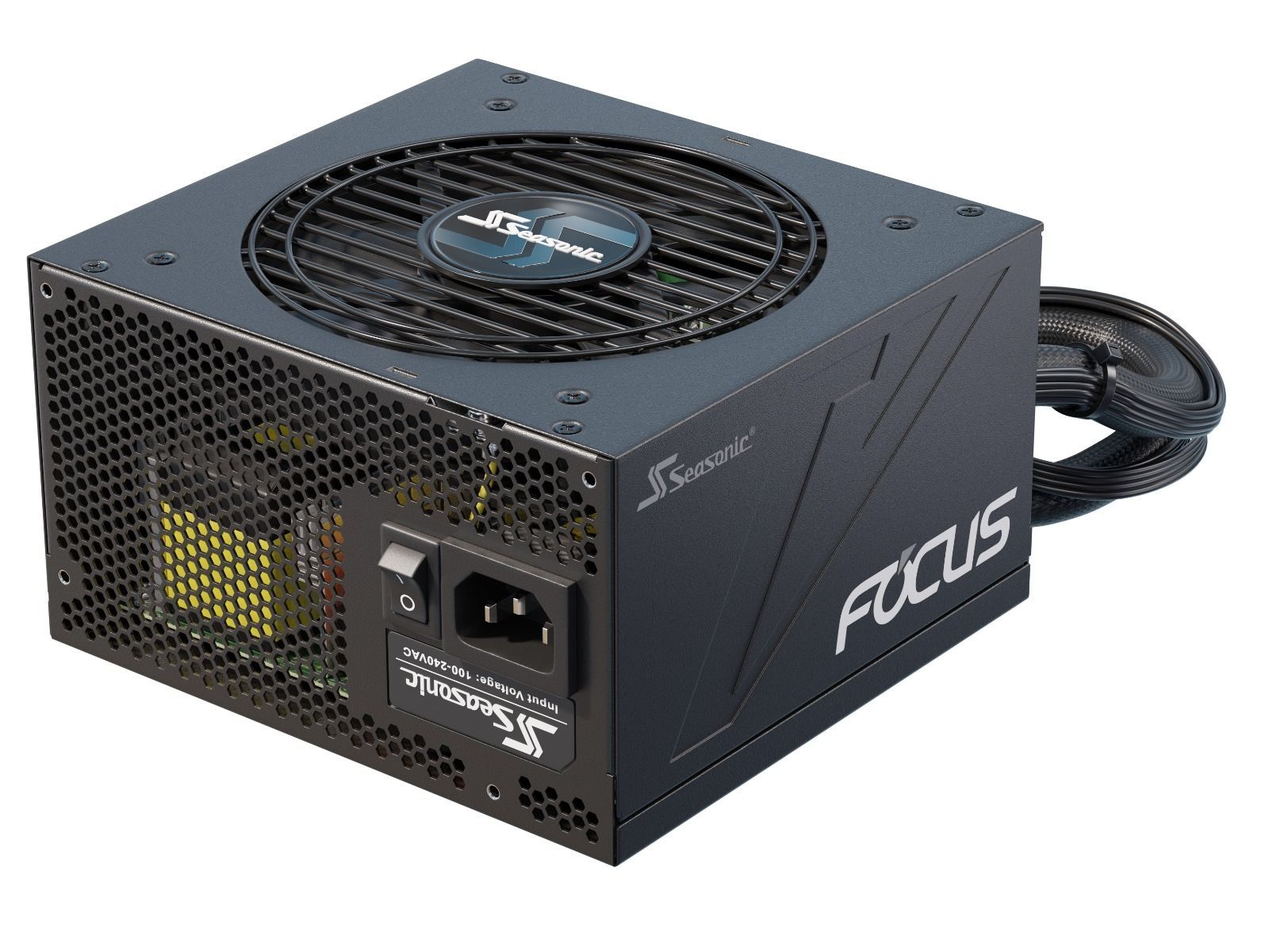

SeaSonic 850W FOCUS GM-850 Gold PSU (SSR-850FM) (OneSeasonic)

FEATURE SUMMARY 80 PLUS Gold certified Semi-Modular Cables Compact Size - 140 mm deep Tight Voltage Regulation Cable-free Connection Design S2FC - Smart and Silent Fan Control DC to DC Converter Design Multi-GPU setup Gold plated connectors 7 years warranty Specifications Technical Specifications 80PLUS Gold Form Factor Intel ATX 12 V Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H) Fan Information Fan Size 120 mm Fan Control S2FC Fan Bearing Fluid Dynamic Bearing Life Expectancy 50,000 hours at 40 C, 15 % - 65 % RH Cable Information Modularity Semi-modular Cable type Webbed cables (attached) Flat black cables(modular) Electrical Features Operating Temperature 0 - 50 C (derating from 100 % to 80 % from 40 C to 50 C) MTBF @ 25 C, excl. fan 100,000 hours AC Input Full Range Protection OPP, OVP, UVP, OCP, OTP, SCP Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH Warranty 7 Years Power Output AC Input Voltage: 100 V - 240 V Current: 12 - 6 A Frequency: 50 Hz - 60 Hz DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB Maximum Power 20 A 20 A 70 A 0.3 A 3 A 100 W 840 W 3.6 W 15 W Total continuous power 850 W Cables Connector Connector count Cable count Cable Main Power (24/20 pins) 1 1 CPU (8/4 pins) 1 1 PCIe (8/6 pins) 6 0 3 SATA 8 2 0 0 0 0 0 Peripheral 3 1 0 Floppy 0 0 Specifications are subject to change without prior notice.
