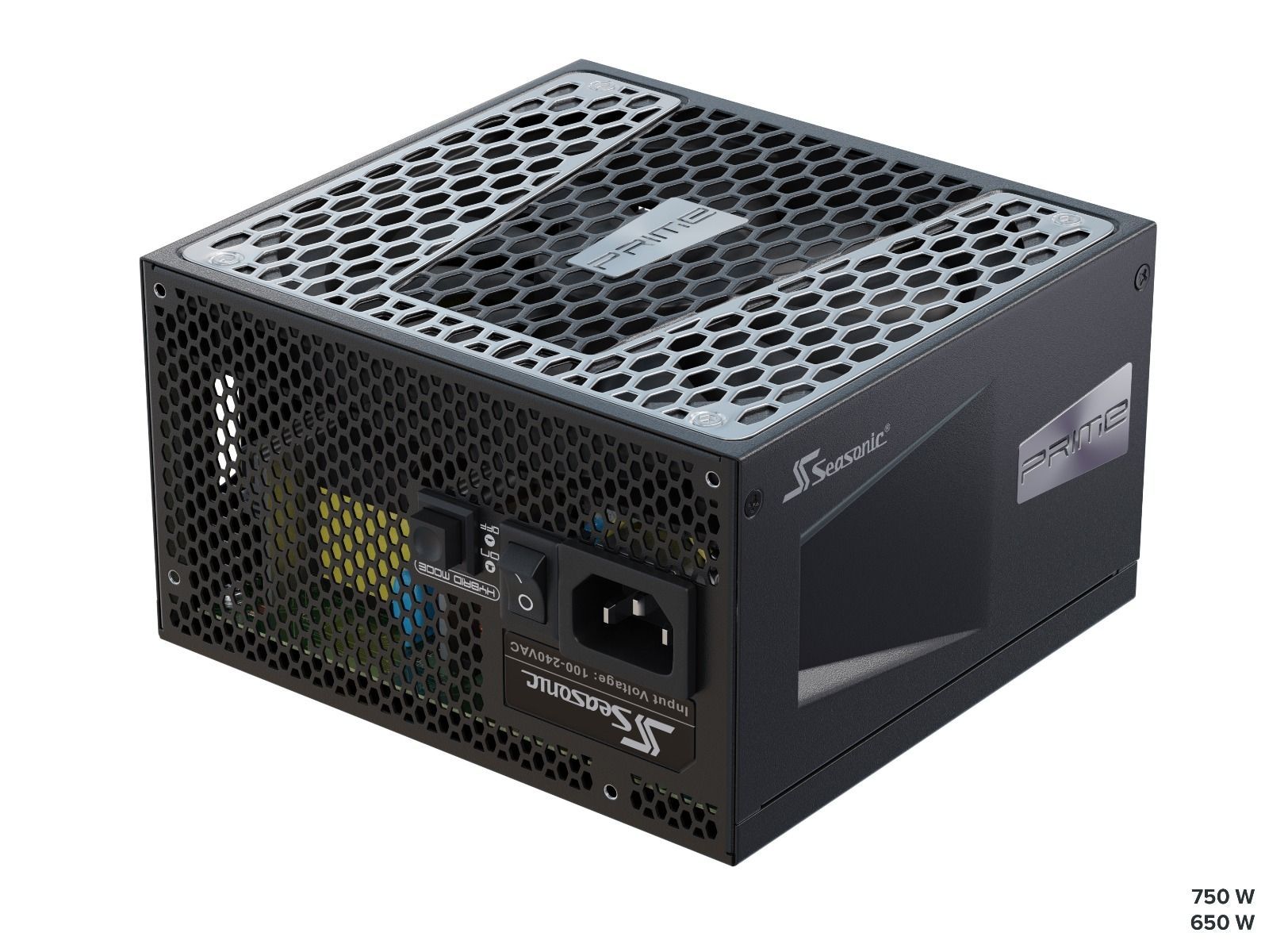

SeaSonic 650W PRIME PX-650 Platinum PSU (SSR-650PD2) (OneSeasonic)

The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process. 80 PLUS® Platinum certified Micro Tolerance Load Regulation (0.5 %) Cable-free Connection Design Premium Hybrid Fan Control - Fanless until 40 % load Multi-GPU setup Gold plated connectors 12 years warranty Specifications Technical Specifications 80PLUS ® Platinum Cybenetics Efficiency Level TBA Cybenetics Noise Level TBA Form Factor Intel ATX 12 V Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H) Fan Information Fan Size 135 mm Fan Control Premium Hybrid Fan Control Fan Bearing Fluid Dynamic Bearing Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH Cable Information Modularity Fully Modular Cable type Flat black cables Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) MTBF @ 25 °C, excl. fan 150,000 hours AC Input Full Range Protection OPP, OVP, UVP, OCP, OTP, SCP Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH Warranty 12 Years Power Output AC Input Voltage: 100 V - 240 V Current: 9 - 4.5 A Frequency: 50 Hz - 60 Hz DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB Maximum Power 20 A 20 A 54 A 0.3 A 3 A 100 W 648 W 3.6 W 15 W Total continuous power 650 W Cables Cable type Connector(s) per cable Total Length (mm) Number(s) of cable(s) included MB (24/20 pins) 1 610 1 CPU (8/4 pins) 1 650 2 PCIe (8/6 pins) 2 750 0 PCIe (8/6 pins) 1 750 4 SATA 4 810 2 SATA 4 860 1 SATA 4 760 0 SATA 2 700 0 SATA 2 570 0 SATA 2 470 0 SATA 2 450 1 Molex 3 690 1 Molex 2 470 0 Molex to SATA 3.3 Adapter 2 300 1 Molex to FDD Adapter 1 101 0 Specifications are subject to change without prior notice.
